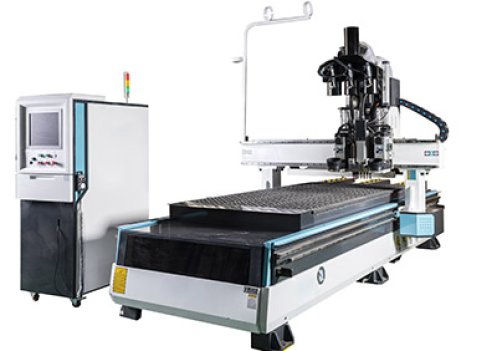

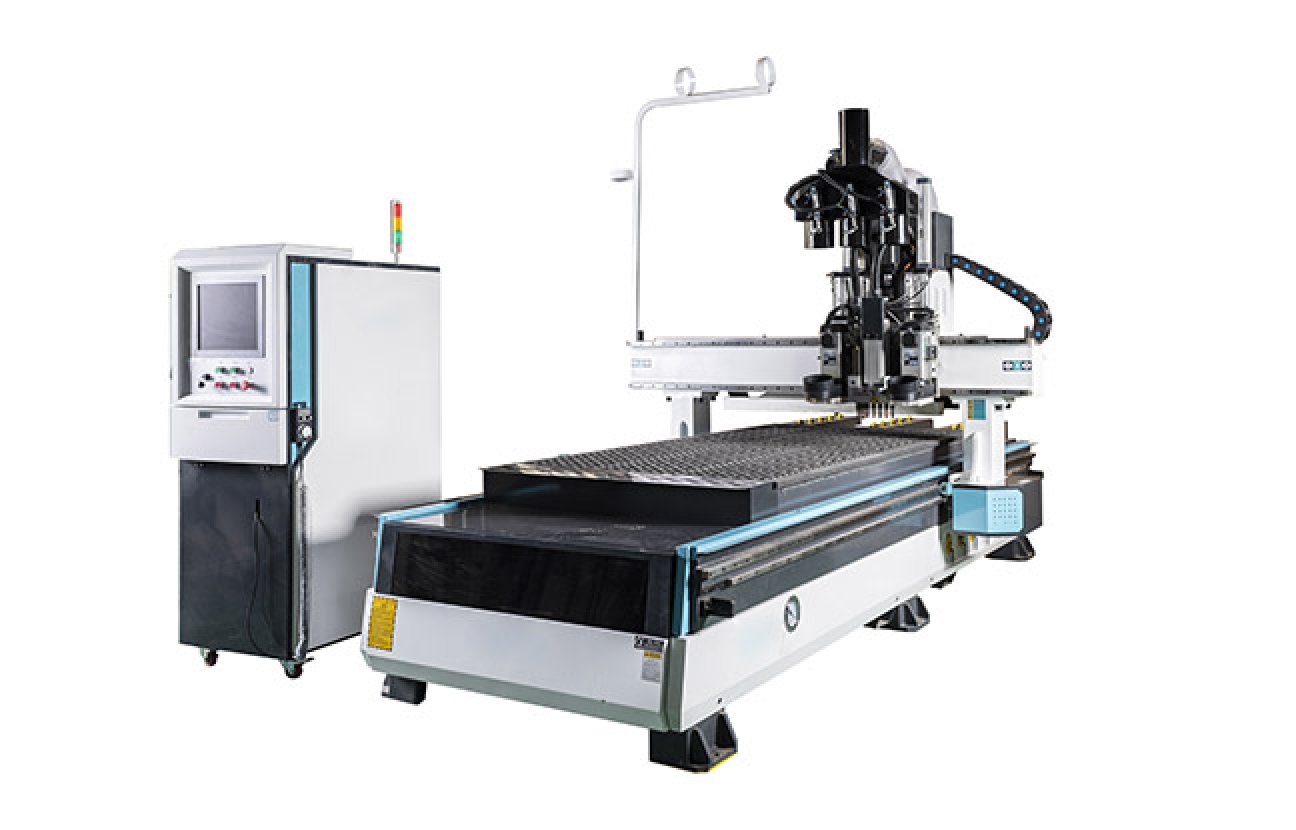

Model | ZD1325-2 heads with drill bits magazine |
Table size | 1300*2530mm |
Working travel | 1300*2500*200mm |
Unload speed | 20000mm/min(MAX) |
Working speed | 13000/min(MAX) |
Repeat positioning accuracy | ±0.05 mm |
Compatible software | Artcam，type3，CAD，CDR etc. |
Instruction code | Standard G code, u00, mmg. plt |
Operating environment | Windows, 9e/2000) XP/WIN.7 32 |
Main motor | 6kw air cooled spindle*2, Italy FAM drill spindle |
Machine body material | Overall steel structure, thickened bed |
Workbench | Vacuum table 6/12 Area , 5.5/7.5kw water cooled vacuum pump |

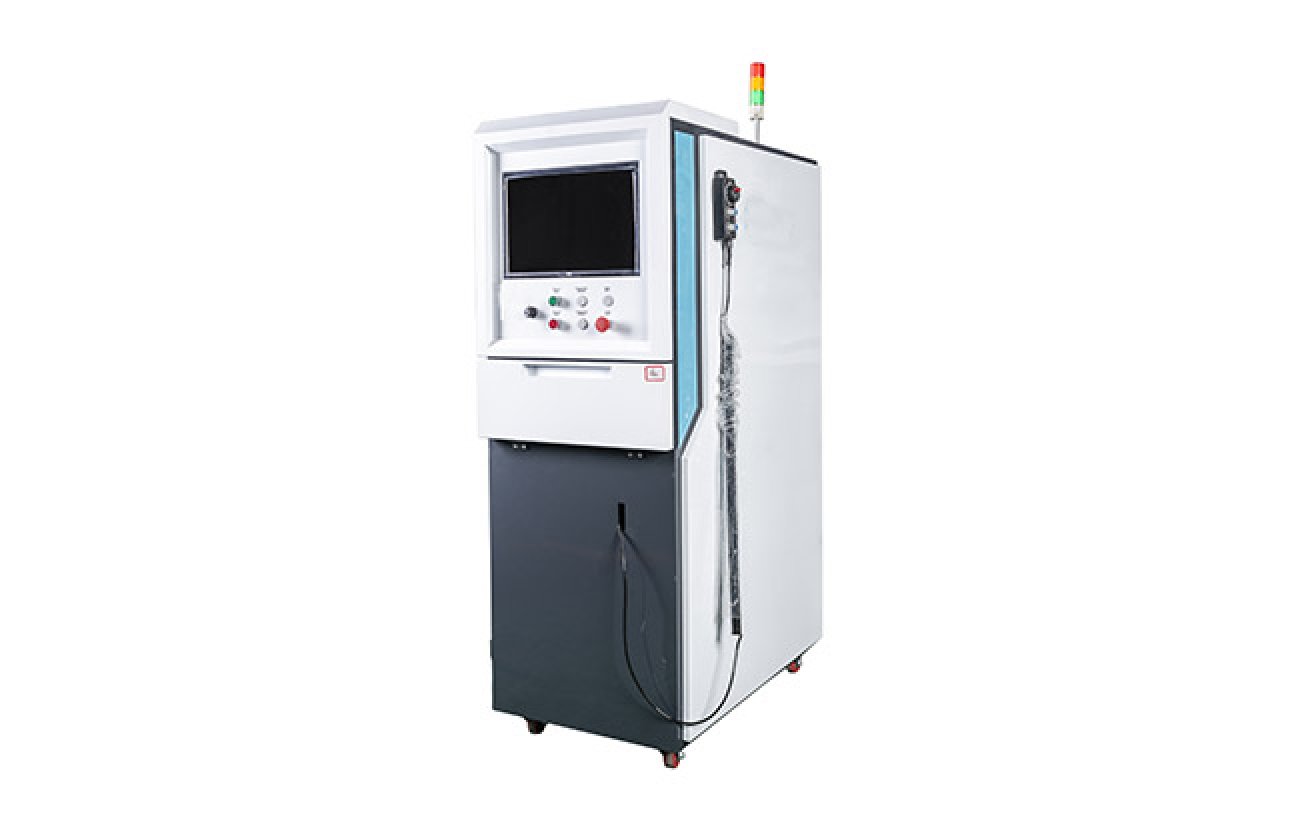

Control system | WEIHONG/SYNTEC |
Reducer | Japanese SHIMPO |
Driver motor | XYZ three-axis adopts JAPAN YASKAWA servo motor |
Transfer method | XY axis high precision helical rack drive, Wuxi XINYUE, Z-axis Taiwan TBI screw drive |
Frequency converter | Shanghai Fuling Inverter |
Guide rail | Taiwan imported straight square rail CSK 25, or Taiwan HIWIN |
Maintenance | With automatic oil filling system, lubrication slider and guide rail for long-term use |

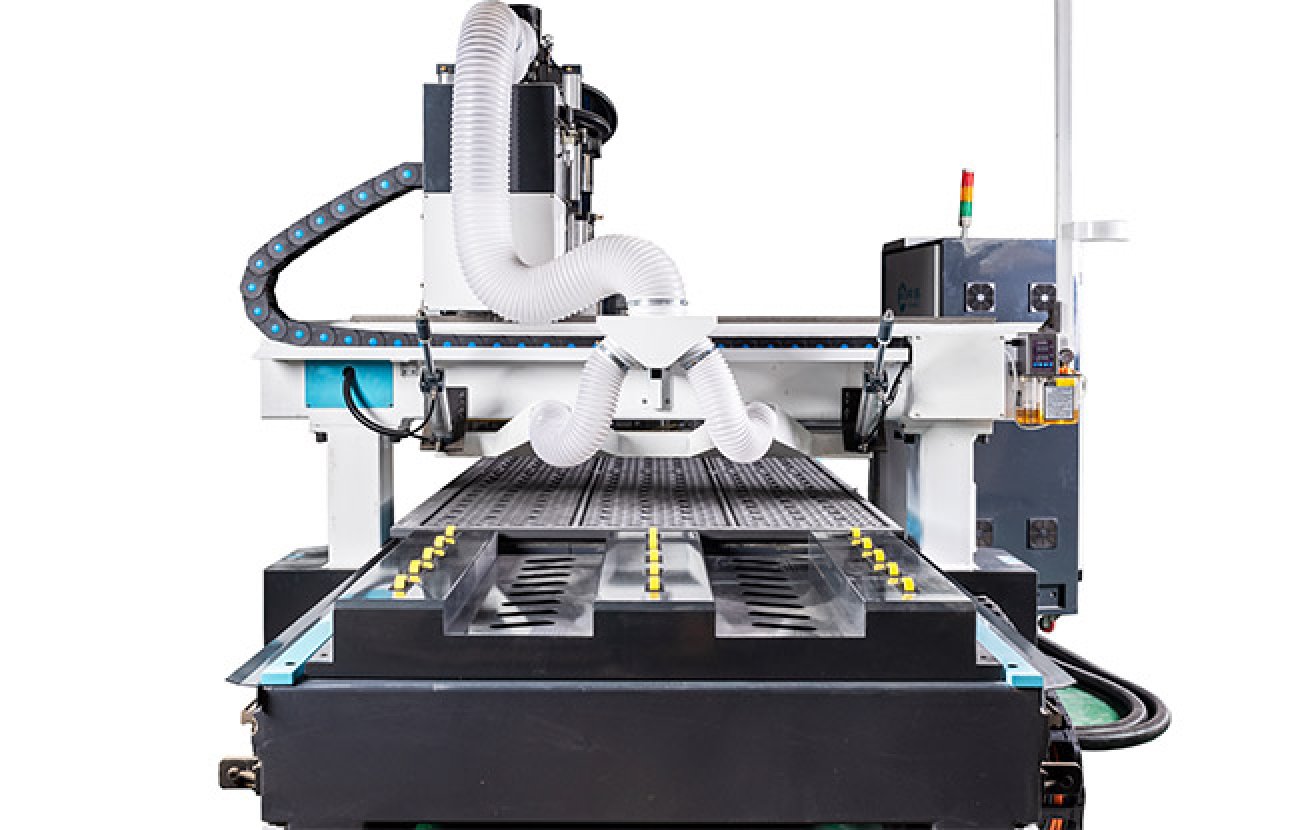

Dust collector | Double bags, high power vacuum cleaner |
Automatic tool calibrator.

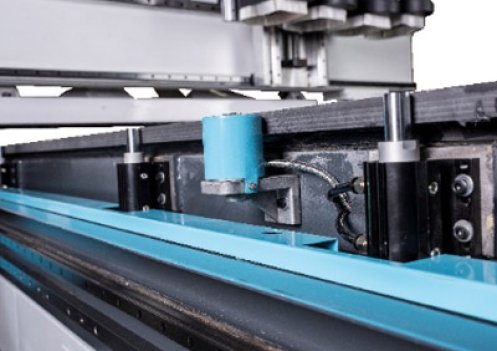

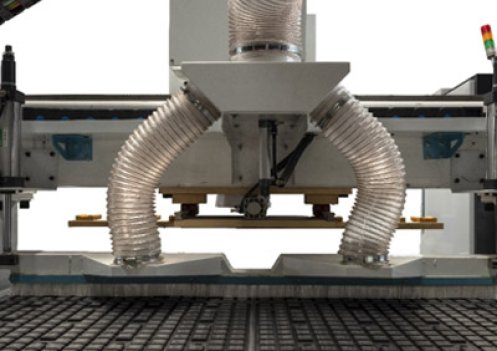

Pushing device: simple and efficient, improve work efficiency.

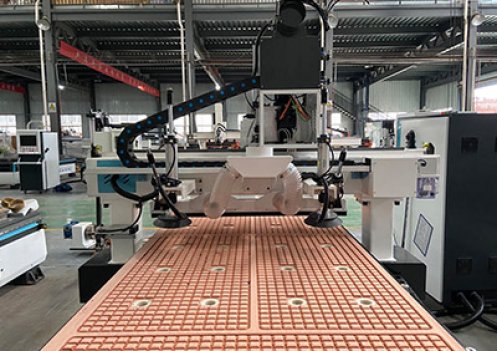

Double-layer PVC vacuum table design, Strong structure, no deformation, with instant adsorption and instant release functions.
Heavy-duty body welded by high-strength thick-walled steel pipes, annealing aging and sandblasting treatment, stable structure and guaranteed accuracy.

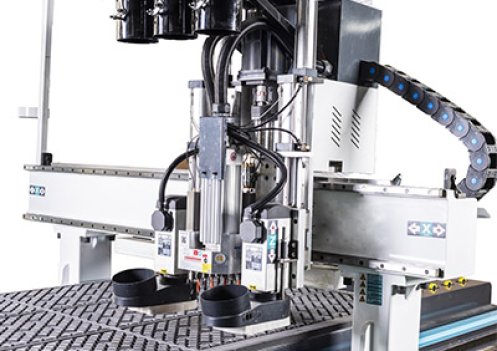

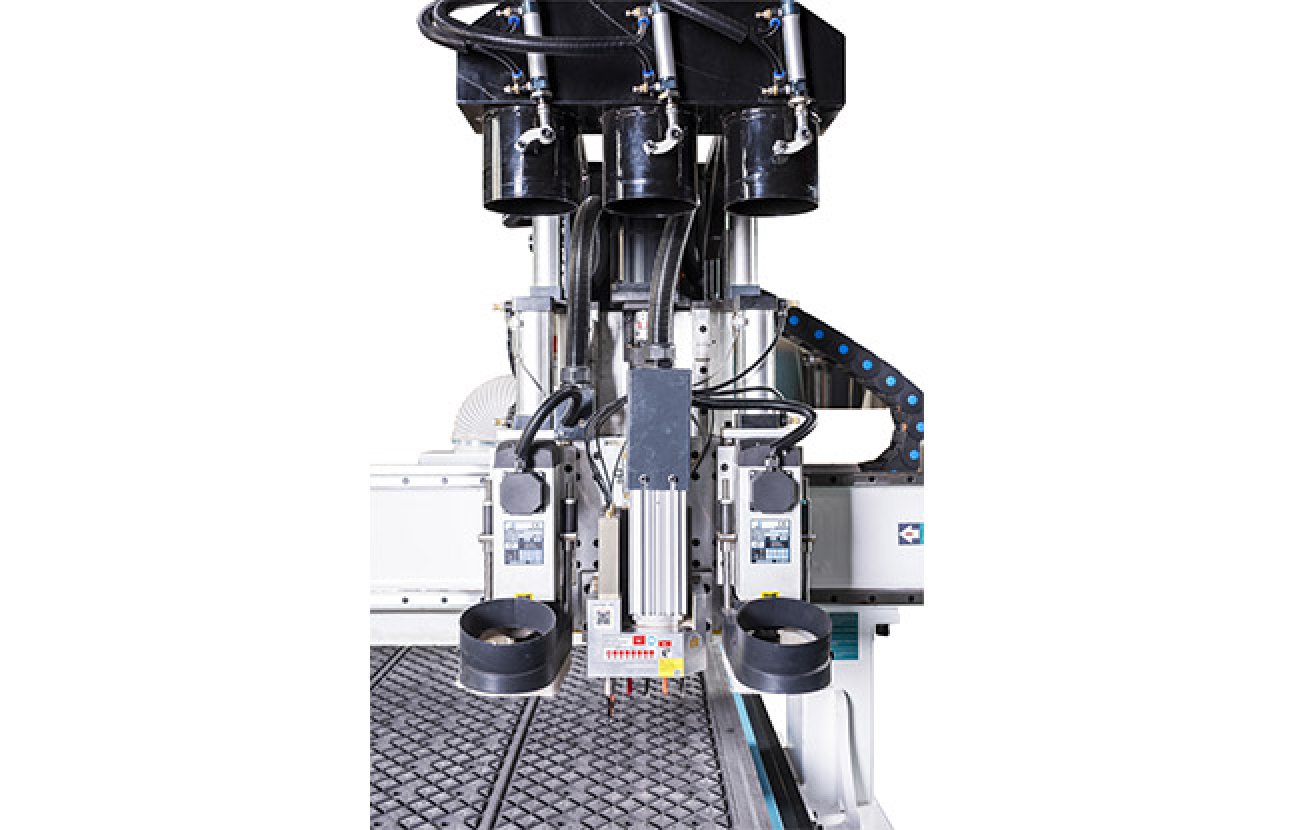

Two main spindles and one drilling package, suitable for efficient cutting, slotting, milling, milling and other processing of panel furniture.
Gantry supports, high strength, minimal vibration. The gantry supports are precision machined from cast iron tooling plate. The cast iron support has inherent vibration dampening characteristics while giving rigid support to the gantry tube.
