Product Details
PVC Edge Banding Machine Technical Data:
Specifications | ZD450D |
Working pressure: | 0.6MPa; |
Total power: | 8KW |
Feeding speed: | 12-23m/min; |
Electric lifting: | 0.37kw/pc; |
Panel thickness: | 10-60mm; |
Panel length: | Min. 150mm； |
Panel width： | Min. 60mm； |
Edge thickness： | 0.4-3mm； |
Overall size： | 4500*900*1590mm |

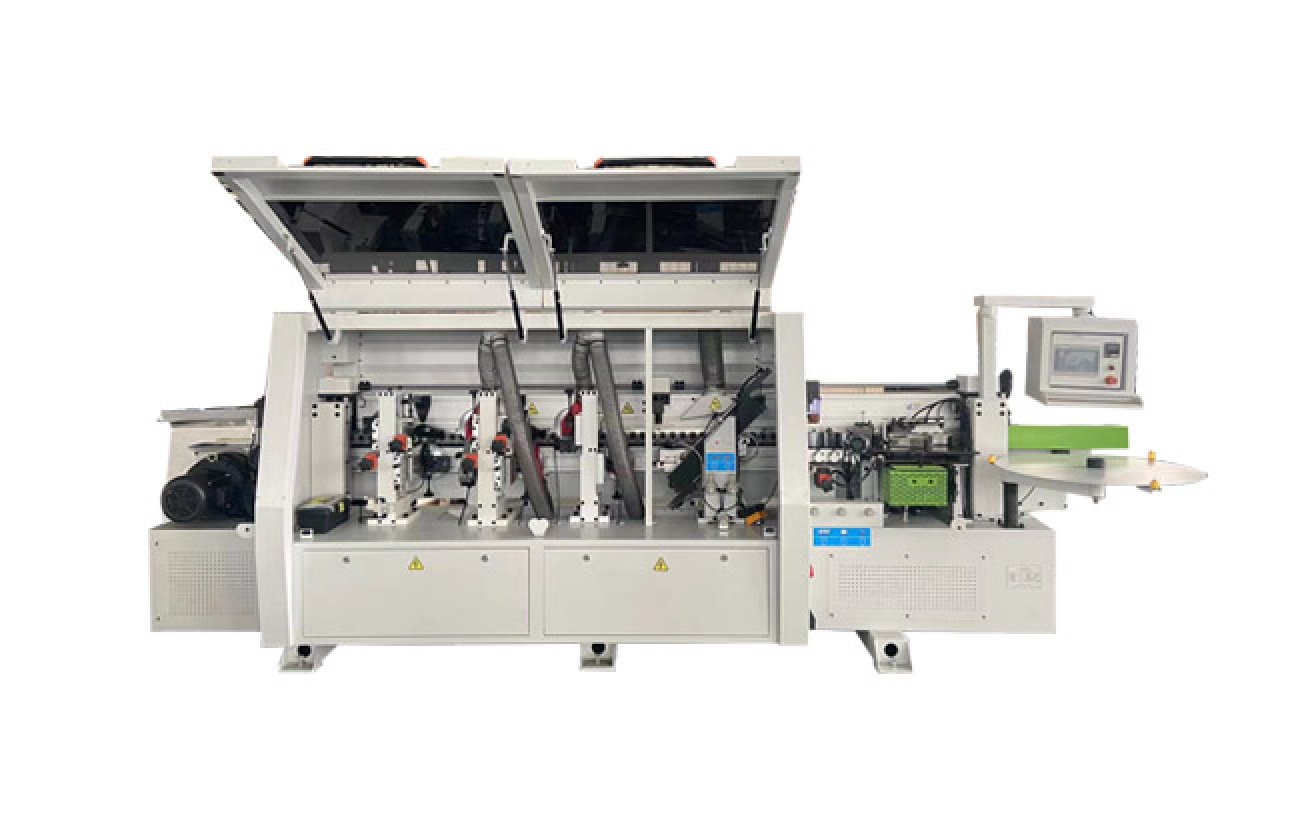

PVC Edge Banding Machine ZD450D Details:

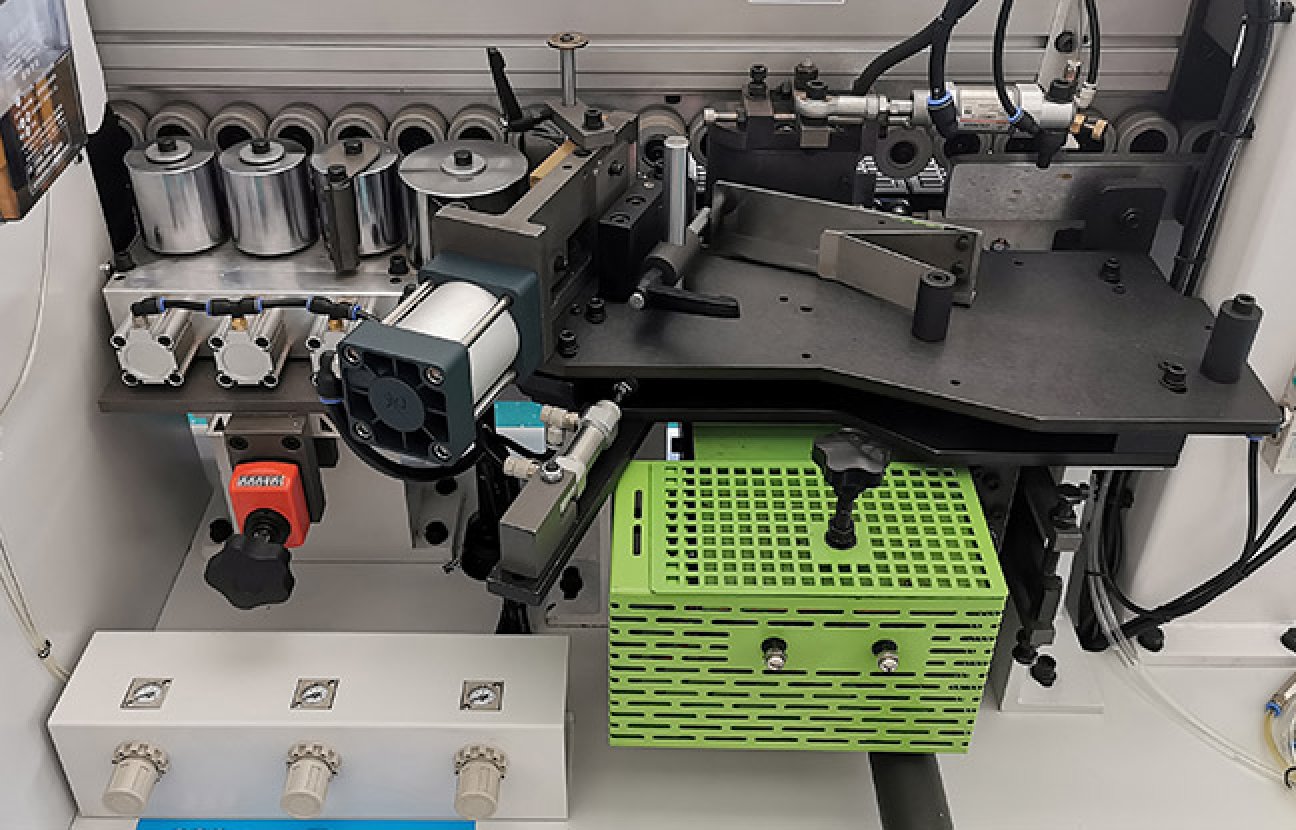

Nonstick material glue pot, easy to clean. Board preheating part, better gluing effect.

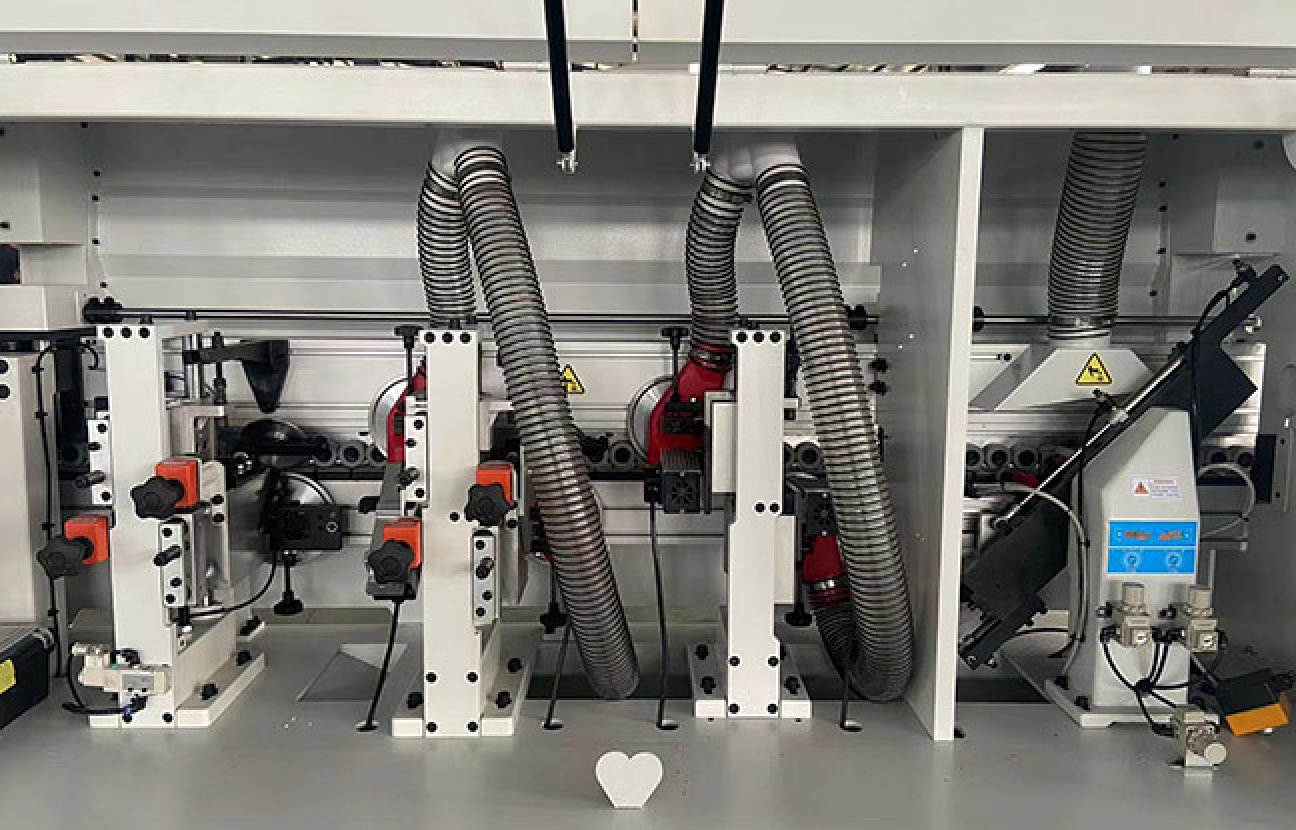

Scrapping process with dust collecting pipe makes sure the clean final panel.

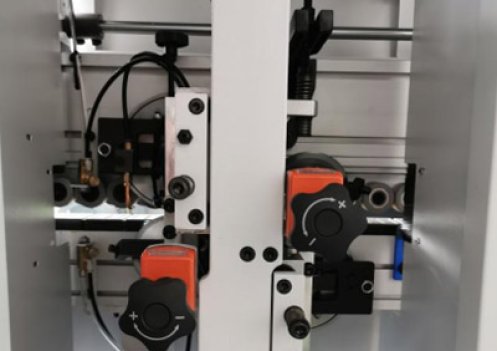

Fine/rough trimming mechanism adopts automatic tracking and high frequency motor to ensure the trimming plates smoothly.
Work Effect Show:
