● Cold press machine working surface is processed by large gantry milling, forming in one go
● Flatness within 0.1mm
● Heavy duty machine body, work stably
● Long life service
● Customizable and OEM & ODM
share:
Inquire now
Add to cart
Product Details

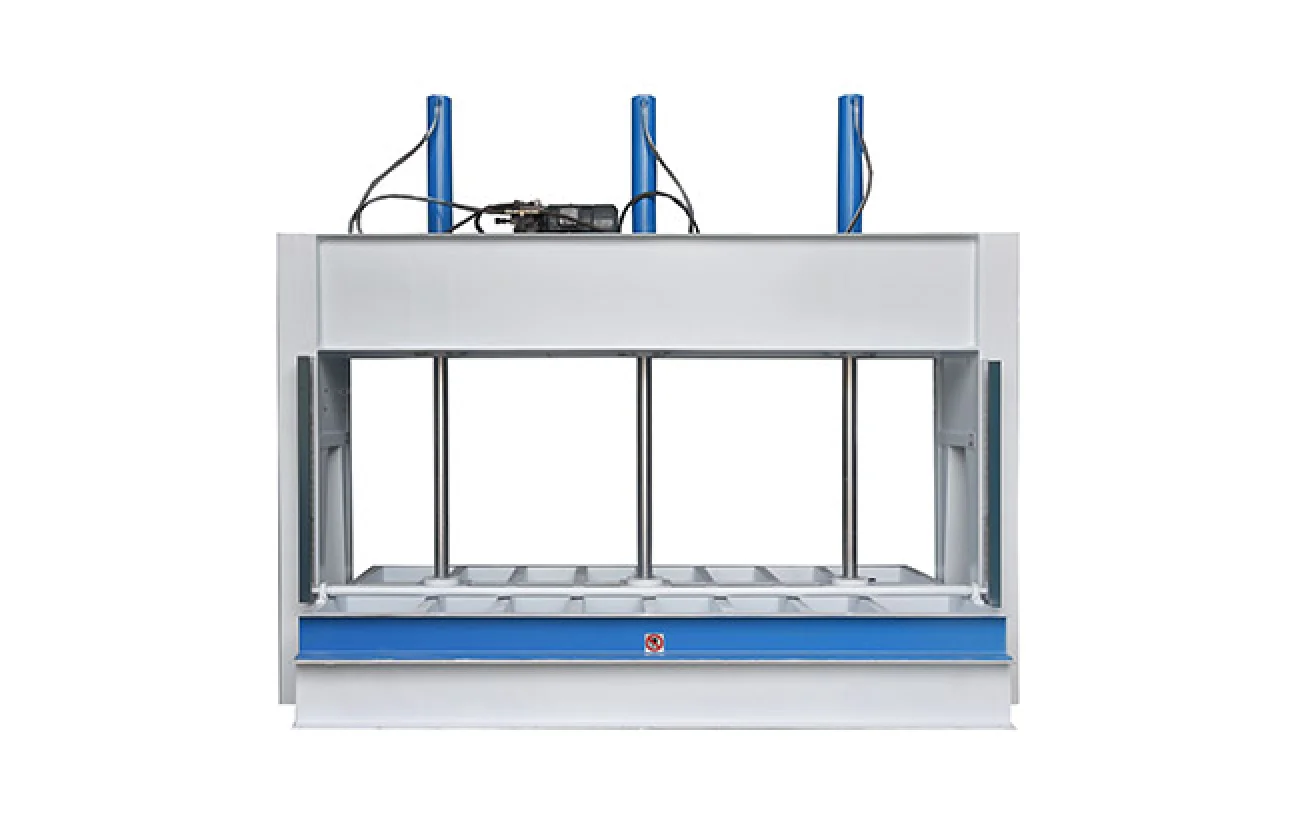

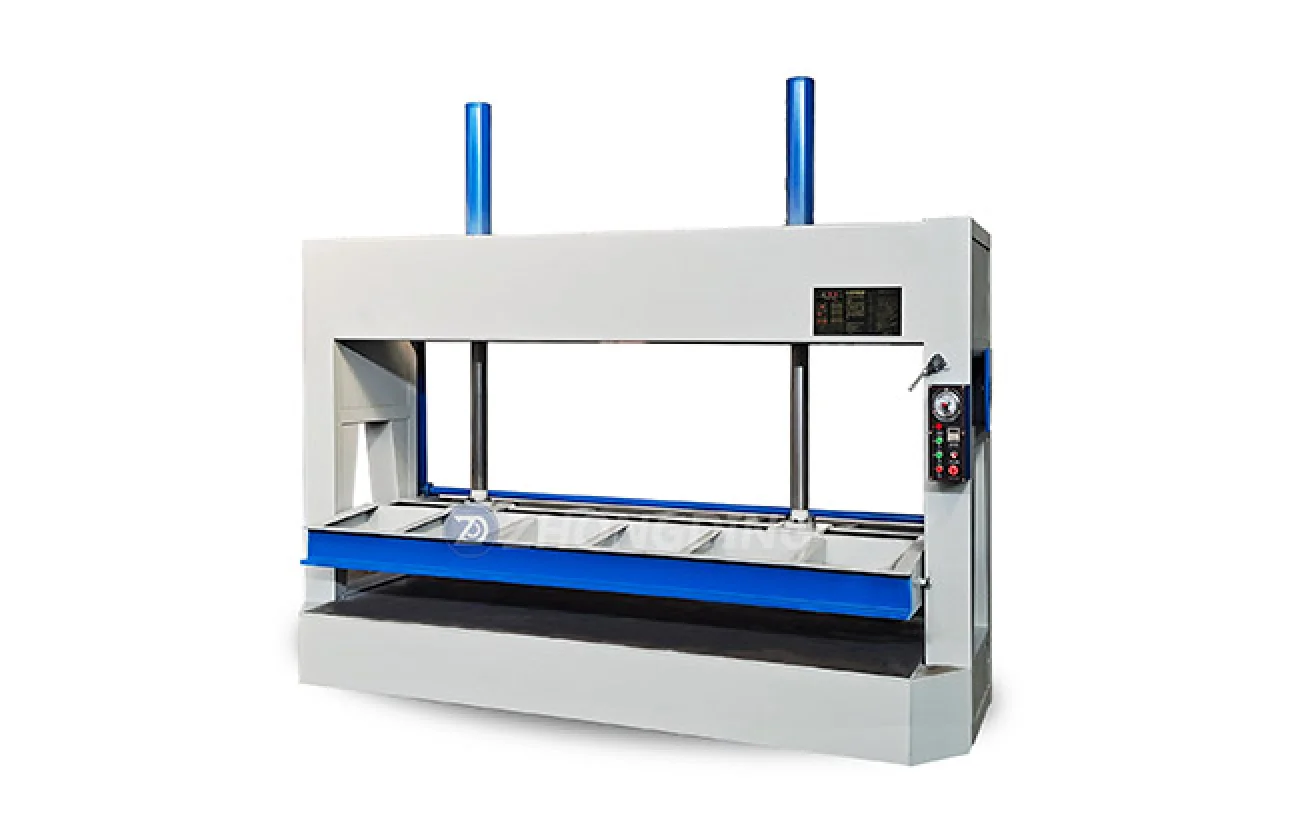

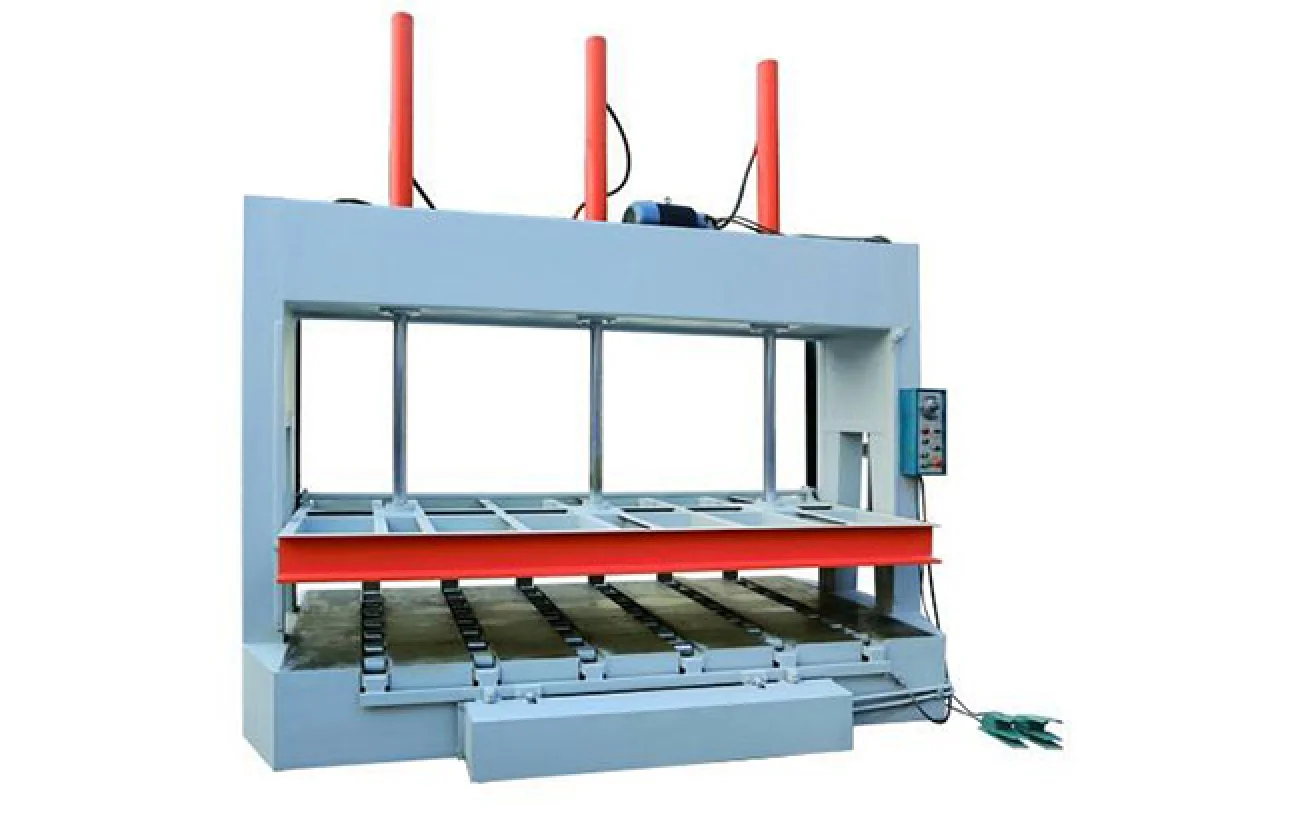

Cold Press Machine Technical Data:
Model
MJ50
MJ100
Max. pressure
50T
100T
Dimension of the platen
1a250*2500mm
1250*2500mm
Working speed
180mm/min
180mm/min
Total power
5.5kw
5.5kw
Stroke
1000mm
1000mm
Overall dimensions
2950*1300*2350mm
2950*1300*2350mm
Net weight
1800kg
2550kg
Cold Press Machine Details:

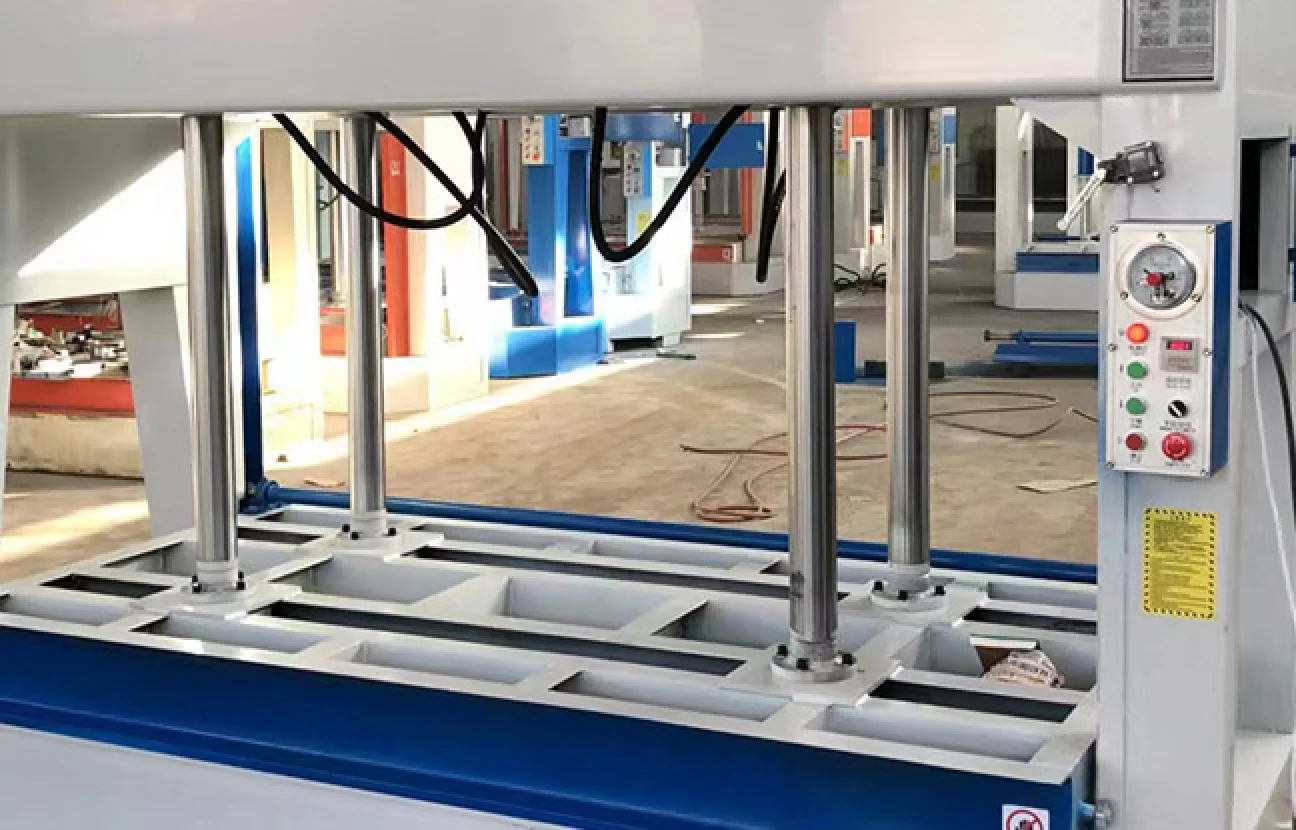

The vertical and horizontal welding structure can make the pressure distribution on the entire table more even and the pressing effect is better.

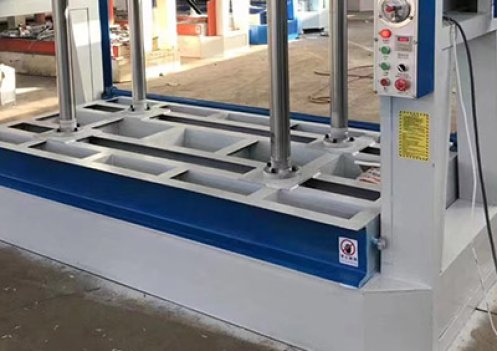

Use special gantry milling to finish the bench so that the pressure plate and the bench fit perfectly without leaving any gaps. The error is even smaller than the thickness of A4 paper.More finesse.

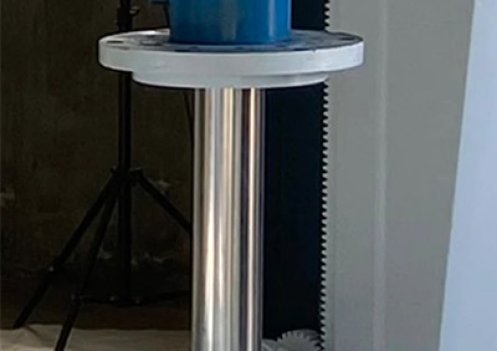

Integrated oil cylinder, hollow (thick wall) plunger rod, hard chrome plated, equipped with imported sealing ring. It will not leak oil or rust after long-term use, and has excellent pressure-maintaining effect.
Based on nearly 20 years of customer feedback and production experience. The plunger rod of the cold press must be hollow, because the cold press has a large stroke and the plunger rod is long. If it is solid, it will be easily bent.
