Panel Saw Machine

● Panel saw machine ZDV7 uses 300mm saw blade

● Sliding table size: 3200/3800x388/395mm

● Gross weight: 850KGS

● Big dust hood

● European style double layers high strength aluminum profile sliding table

● Customizable, OEM & ODM


Inquire now
Add to cart
Product Details
Panel Saw Machine ZDV7 Specification:

Dimension of sliding table

3200x388 mm

Gross cut capacity

3200 mm

Width of cut between saw blade and rip fence

1250 mm

Tilting saw group


Diameter of main saw blade

300 mm

Max cutting height 90°/45°

80/55 mm

Speed of main saw spindle

4000/6000 r.p.m

Main saw motor power

5.5 kw

Main spindle diameter

30 mm

Diameter of scoring saw blade

120 mm

Speed of scoring saw spindle

8000 r.p.m

Scoring saw motor power

1.1 kw

Scoring saw spindle diameter

20 mm

Gross weight

850 KGS

Overall dimension

3250x3150x900 mm

Panel Saw Machine ZDV7 Details:
Panel Saw Machine

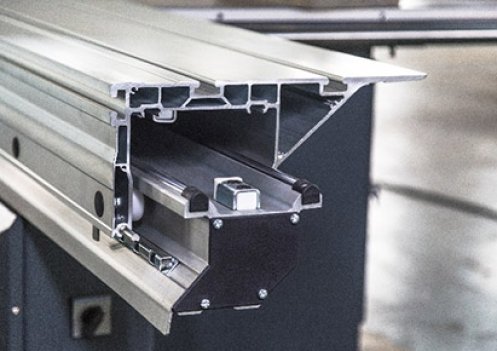

Double layer sliding table, more durable and durable. Not easily deformed.

Panel Saw Machine

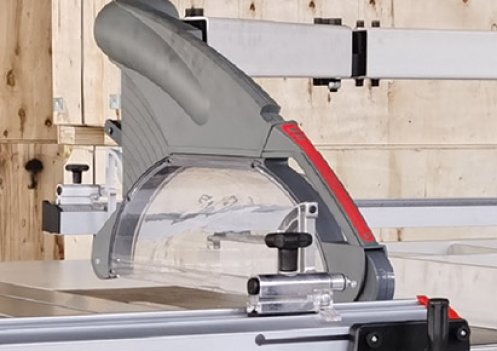

European big dust hood. The saw blade protection allows the operator to visualize the panel while cutting and increase the dust extraction capacity.

Panel Saw Machine

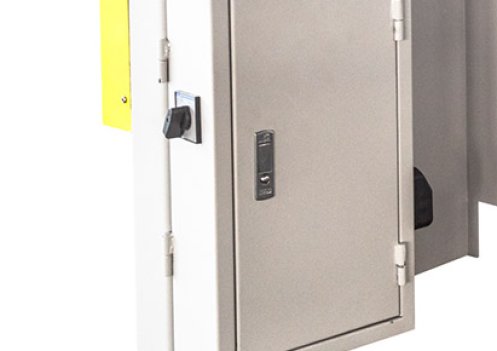

Independent electric box is dustproof, which can low rate of power failure. Top quality electric parts, more sensitive and longer lifetime.

Panel Saw Machine

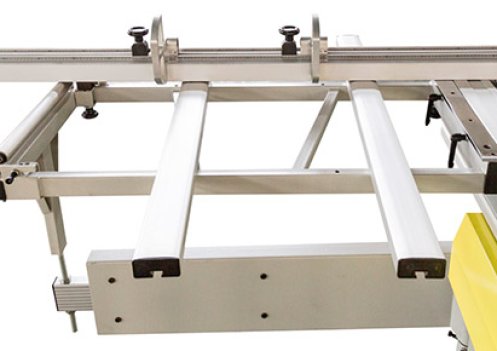

Heavy structure crosscut fence with 2 pieces larger clamp, the fence can be positioned both sides, easier for operator.

Panel Saw Machine

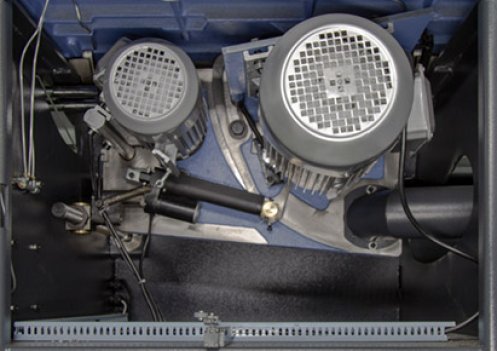

Motor structure: The cutting assembly of this sliding table saw was projected to assure a high quality and precise cut. With 5.5kw for the saw blade and 1.1kw for scoring blades.

Panel Saw Machine

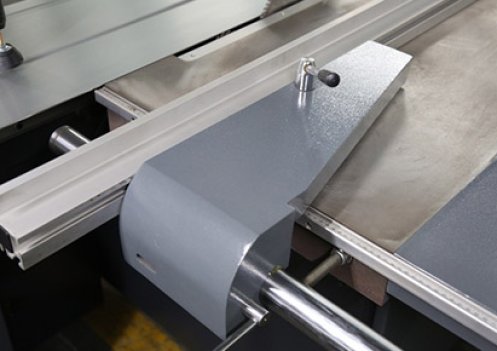

Bigger rip fence to make sure the position will not move even longtime work. No need to adjust frequently because of the displacement caused by board impact. This will make sure the high precision and more efficient. And special design make sure the saddle will not hit the blade and will not drop on the floor during working. This make sure the high efficient and high precision.

Panel Saw Machine ZDV7 Cutting Effect Show:

未标题-4_0001_图片10  未标题-4_0000_图片11
