Panel Saw

● Panel saw ZD350 can use 350mm saw blade

● Sliding table size: 3200/3800x388/395mm

● Gross weight: 850KGS

● Independent electric box is dustproof

● European style double layers high strength aluminum profile sliding table

● Customizable, OEM & ODM


Inquire now
Add to cart
Product Details
Panel Saw ZD350 Technical Data:

Saw blade lift

Electrical (optional)

Saw blade angle tilting

Electrical (optional)

Saw blade readout

Digital readout (optional)

Dimension of sliding table


Gross cut capacity

3200/3800 mm

Width of cut between saw blade and rip fence

1250 mm

Tilting saw group


Diameter of main saw blade

350 mm

Max cutting height 90°/ 45°


Speed of main saw spindle

4000/6000 r.p.m

Main saw motor power

5.5 kw

Main spindle diameter

30 mm

Diameter of scoring saw blade

120 mm

Speed of scoring saw spindle

8000 r.p.m

Scoring saw motor power

1.1 kw

Scoring saw spindle diameter

20 mm

Gross weight

850 KGS

Overall dimension

3250x3150x900 mm

Panel Saw ZD350 Machine Details:
Panel Saw

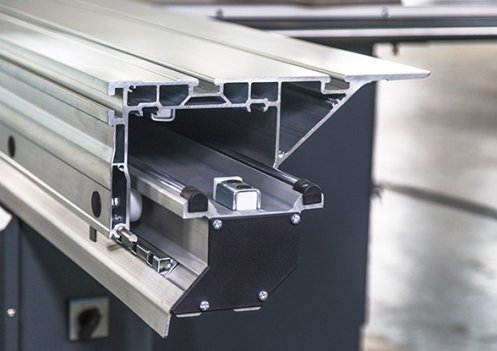

Double layer sliding table, more durable and durable. Not easily deformed.

Panel Saw

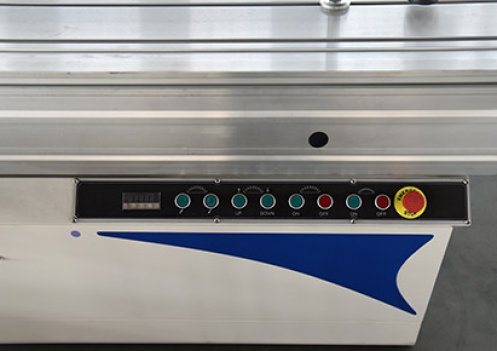

Saw blade electric lifting and digital readout. CHINT brand electric device. More safety and durable.

Panel Saw

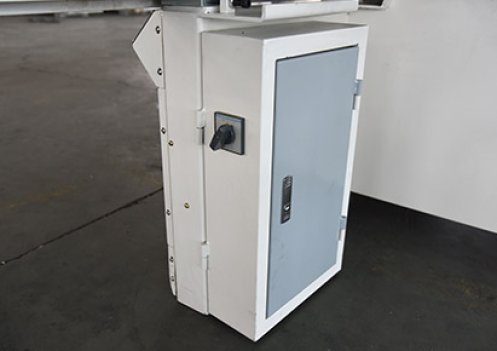

Independent electric box is dustproof, which can low rate of power failure. Top quality electric parts, more sensitive and longer lifetime.

Panel Saw

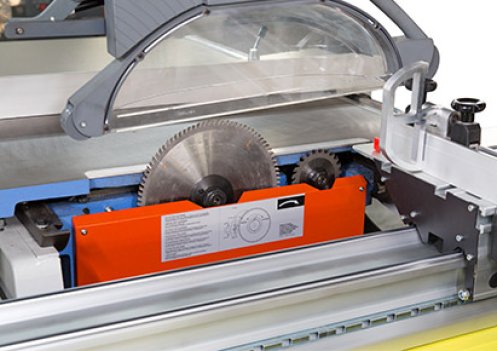

Double saw blade. Scoring saw blade to cut a line and big saw blade to cut, which make sure the cutting surface is more smooth and perfect without burrs.

Panel Saw

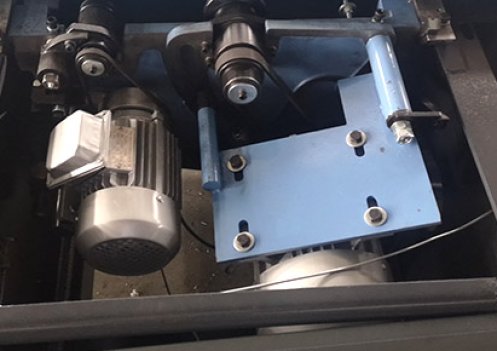

Motor part is fixed on the machine body to make sure the stable of machine. The cutting effect is more precision and perfect.

Panel Saw

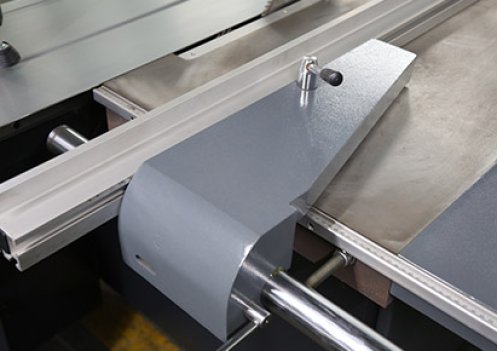

Big rip fence to make sure the position will not move even longtime work. No need to adjust frequently because of the displacement caused by board impact. This will make sure the high precision and more efficient. And special design make sure the saddle will not hit the blade and will not drop on the floor during working. This make sure the high efficient and high precision.

Cutting Effect Show:

未标题-4_0001_图片10  未标题-4_0000_图片11
